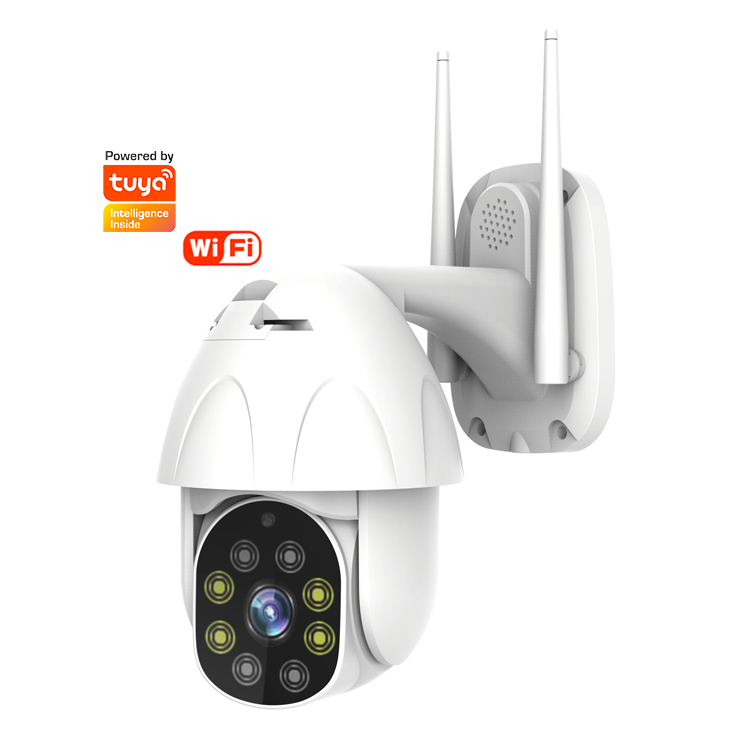

Smart Outdoor Waterproof Full Color PTZ Camera Motion Detection
Pan/Tilt Camera Wifi min Video Camera
Product Description
| Specification parameter |
| system | Main Processor | GK7102 |
| image sensor | GC1034/GC2053 |
| Operation System | Embedded LINUX OS system |
| Video | High Definition | 720P/1080P |
| Video Compression | Smart H.264+ |
| Rotation angle | Horizontal:355° ; vertical: 90° |
| Object tracking | Support |
| low illumination | 0.1LUX/F1.2 |
| picture Capture | Support |
| Video Flip | Support |
| Audio | Coding standard | G.711 |
| Two-way Speech | Support |
| Record management | Video file size | 2.5GB-4.5GB/Day |
| Record Mode | Manual record, motion detection record, scheduled record, alarm
record |
| Video storage | TF Card/Cloud |
| playback, back up | Support |
| Alarm trigger | Video Push,Alarm recording,screen shot capture ,sending Email |
| Network | Network Interface | 1*RJ45 , 10/100M10-100 Base-T, self-adaptable Ethernet port |
| WIFI | 802.11b/g/n |
| Bitstream | Three Stream |
| Network Protocol | Support TCP/IP,RTSP,ONVIF, etc |
| transmission mode | P2P,Smart Cloud Sever |
| WIFI connection | Sweep QR code,Network Cable connection,AP Hotspot Addition |
| extend | TF Card | Maximum support 128GB TF card |
| Reset key | Support |
| power supply | Power | DC 12V 2A |
| Power consumption | 10W |
| work environment | Suitable place | Home,shop,School,factory; |
| Installation mode | Flat put,Wall mounted,hoisting |
| Working Temperature | -10℃-+55℃ |
| Working humidity | 10%-90% |
| Other | Camera lens | 3.6MM |
| Lamp board | 8 pcs |
| Product size | (mm) |
| Camera |
| Image sensor | 1/4" CMOS 720P | 1/2.7" CMOS Color sensor 1080P |
| Min.illunimation | 0.1lux /F1.2 |
| Lens | 4mm |
| Angle of view | 85degree |
| IR LEDS | 8pcs leds 4 IR and 4 white light |
| IR Distaance | 50M |
| Day & night | IR -CUT filter auto switch |
| Compression |
| Video compression | H.264 |
| Audio compression | G.711 |
| Bit Rate | 16Kbps-2Mbps |
| Stream | Yes |
| Image |
| Resolution | 720P(1080*720),VGA(640*480) | 1080P(1920*1080),VGA(640*480) |
| Frame rate | 25fps |
| White balance | Auto |
| Image settings | Picture flip,Motion detection |
| Network |
| Alarm trigger | Motion detection notification |
| Wireless | WIFI .802.11 b/g/n |
| Support mobile system | IOS7 UP , Android 4.0 up |
| Security | User authentication, software encryption |
| Interface |
| RJ45 Port | YES |
| On board storage | Build in TF Slot support max 128GB |
| General |
| Operating temperature | .-10°C + 50°C |
| Material | Plastic |
| Ingress Protection | Outdoor IP65 |
| Power supply | DC12V/2A |
| Power consumption | 20W |
